From drawing.
To detailed estimate.

From Drawing to Detailed Estimate—Faster

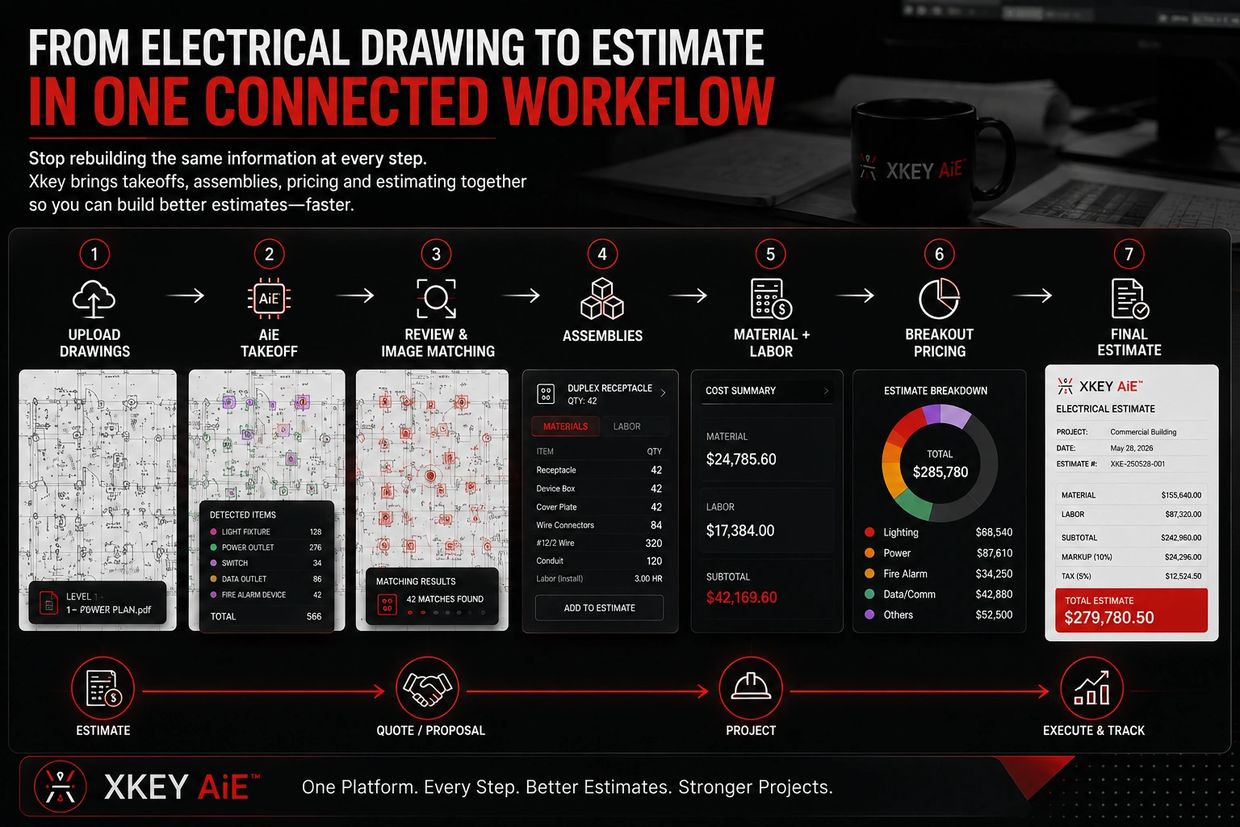

Electrical Drawing to Estimate in One Connected Workflow

Stop Rebuilding the Same Information at Every Step

Traditional estimating requires estimators to move between drawings, takeoff tools, spreadsheets, pricing databases and estimating software.

Xkey brings the workflow together. AiE helps accelerate the takeoff, while Xkey turns quantities into assemblies, labor and material costs—and gives the estimator control over the final estimate.

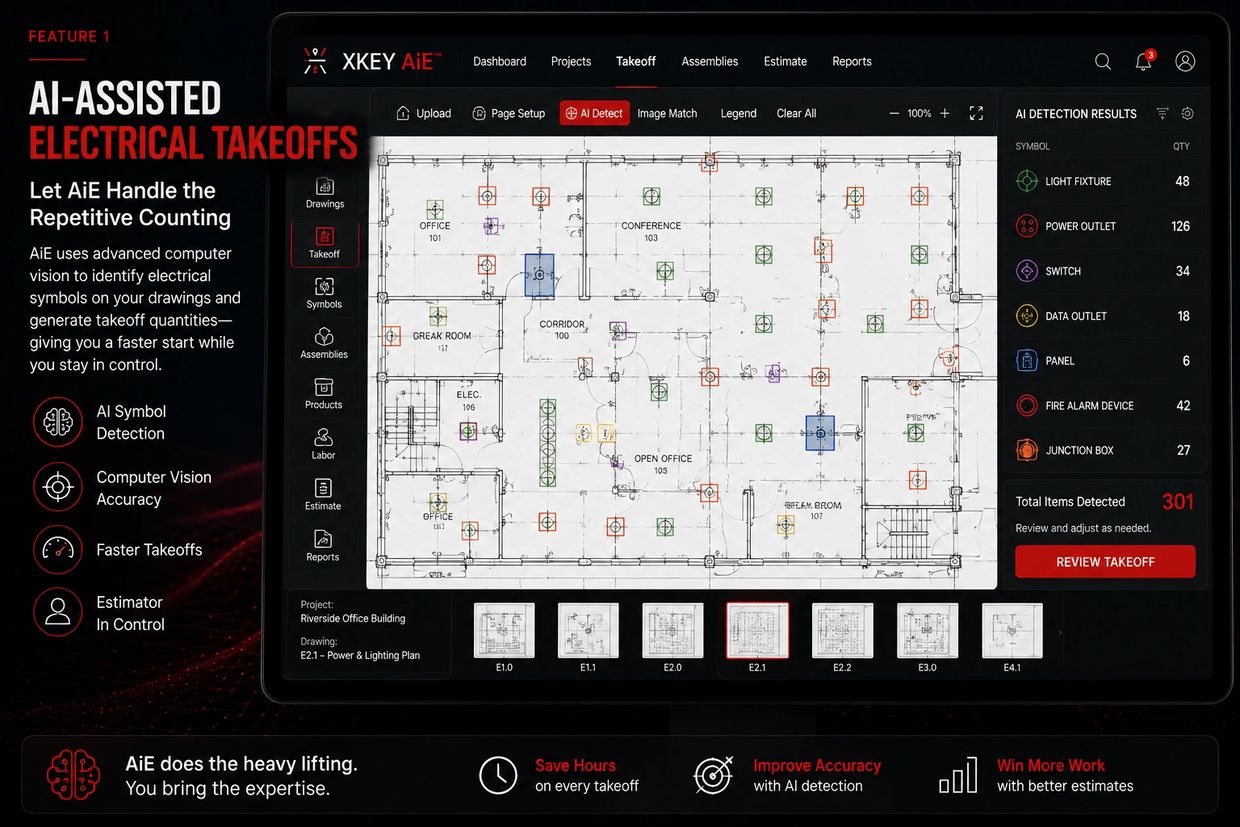

AI-Assisted Electrical Takeoffs

Let AiE Handle the Repetitive Counting

AiE uses computer vision to help identify electrical symbols on drawings. Estimators review and complete the takeoff.

AI Symbol Detection • Computer Vision • Faster Takeoffs • Estimator Review

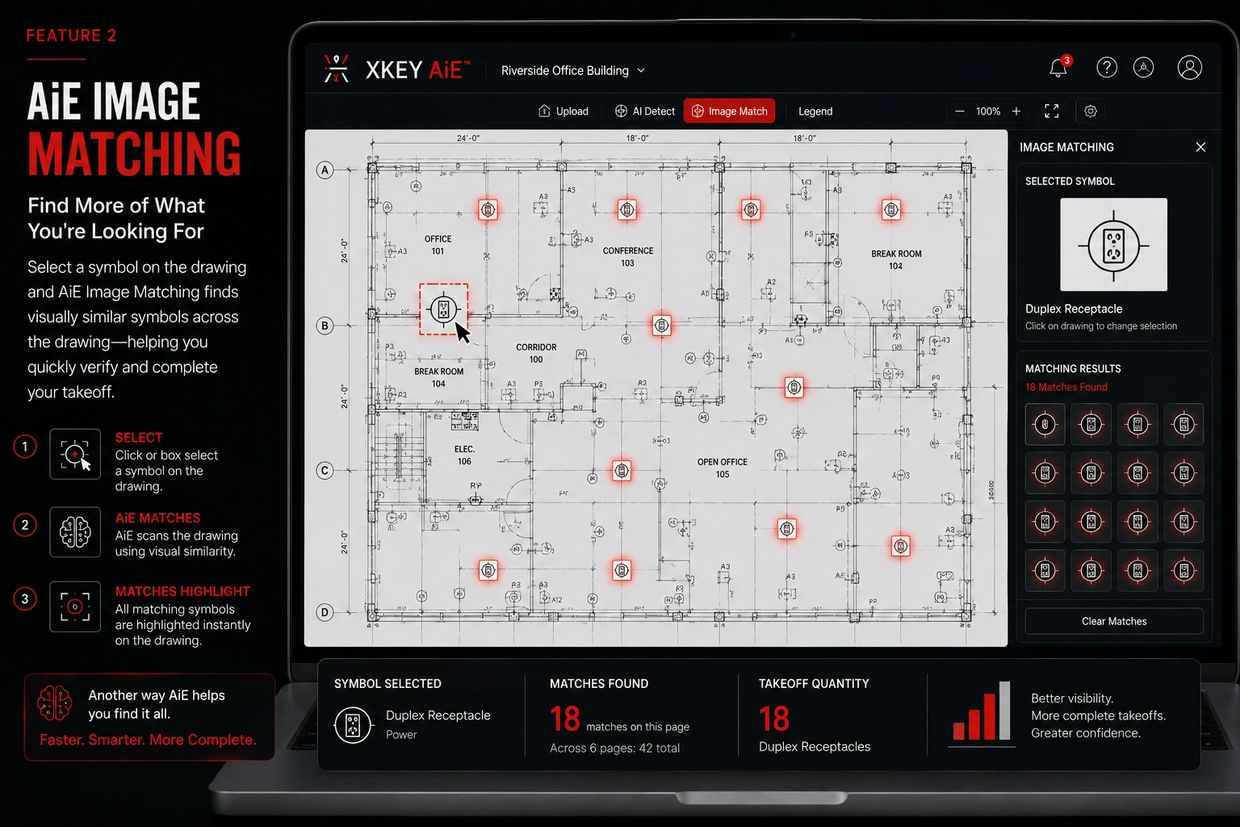

AiE Image Matching

Find More of What You're Looking For

Select a symbol directly from an electrical drawing and AiE Image Matching searches for visually similar symbols across the drawing—giving estimators another way to find devices and shore up the takeoff.

Visual Search • Similar Symbol Detection • Fast Drawing Review • Takeoff Verification

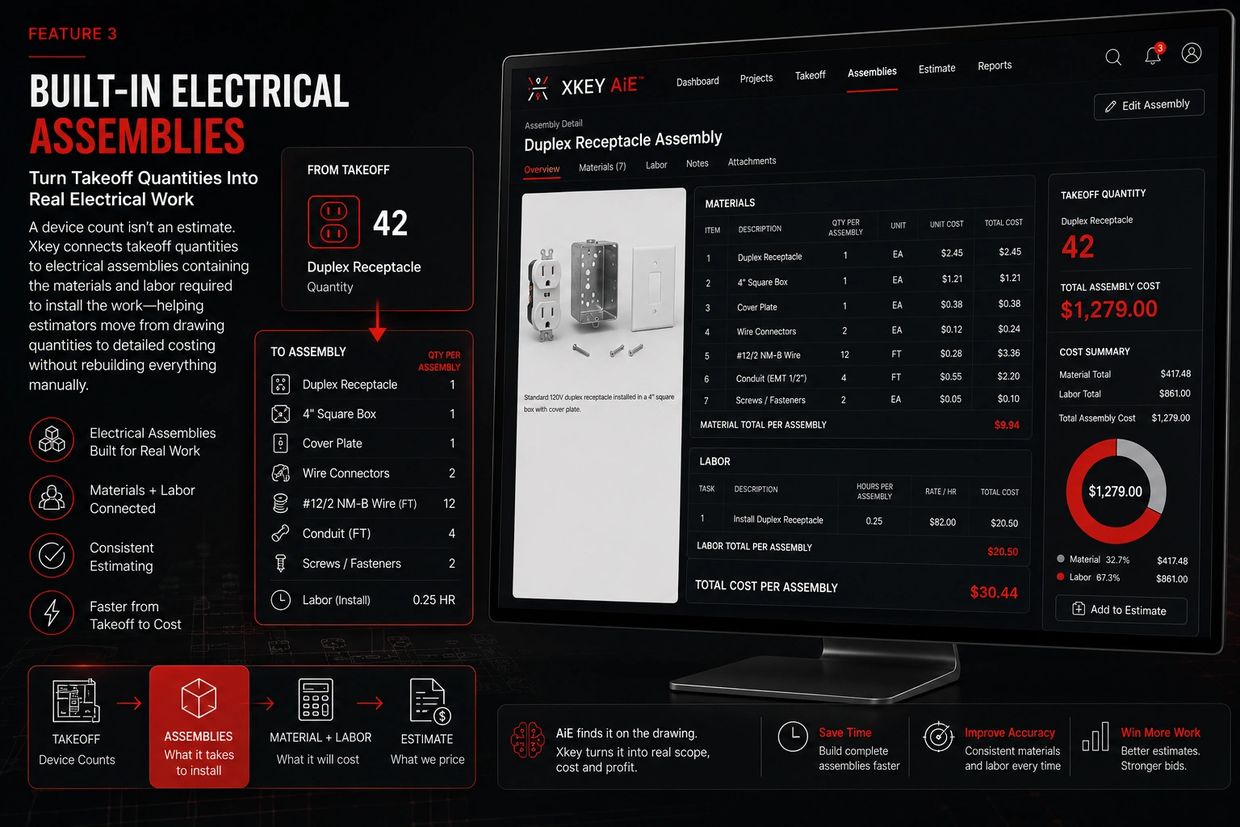

Built-In Electrical Assemblies

Turn Takeoff Quantities Into Real Electrical Work

A device count isn't an estimate.

Xkey connects takeoff quantities to electrical assemblies containing the materials and labor required to install the work—helping estimators move from drawing quantities to detailed costing without rebuilding everything manually.

Electrical Assemblies • Material Components • Labor Units • Consistent Estimating

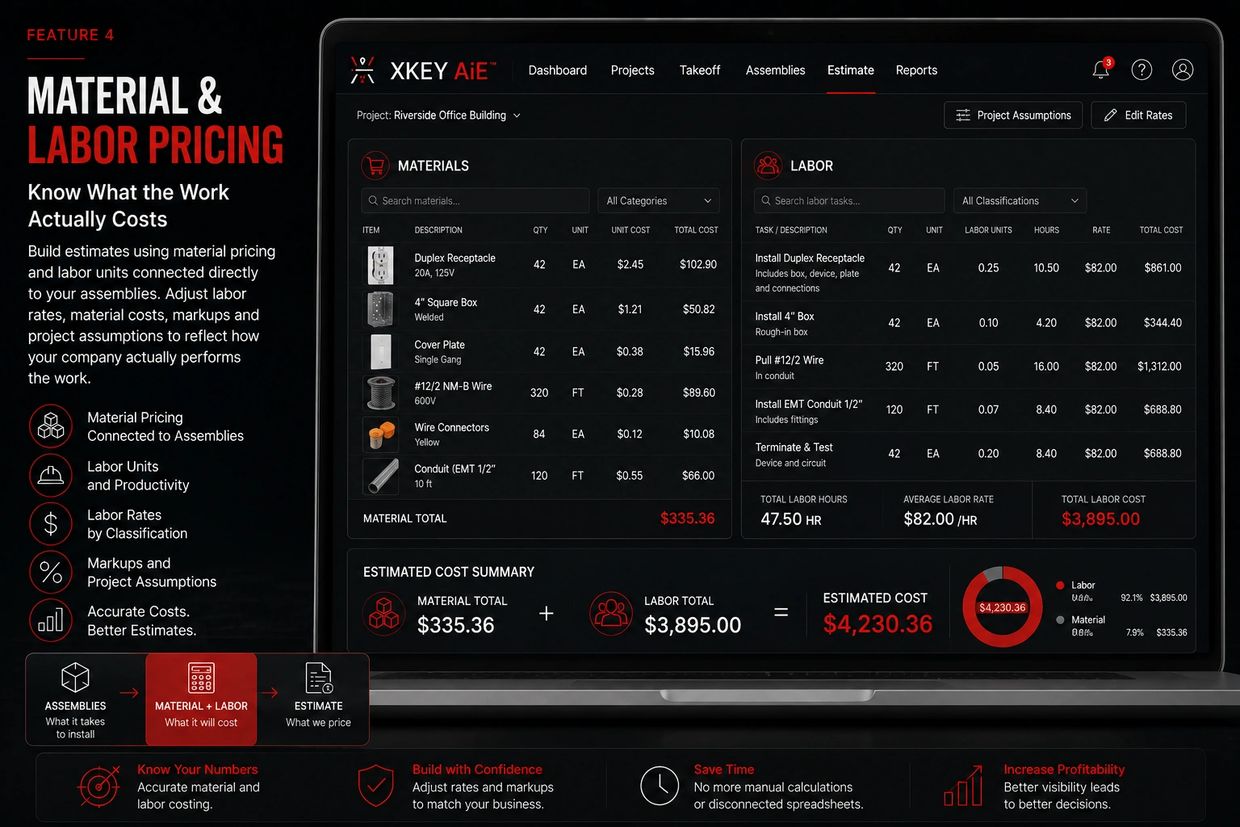

Material & Labor Pricing

Know What the Work Actually Costs

Build estimates using material pricing and labor units connected directly to your assemblies. Adjust labor rates, material costs, markups and project assumptions to reflect how your company actually performs the work.

Material Pricing • Labor Units • Labor Rates • Markups

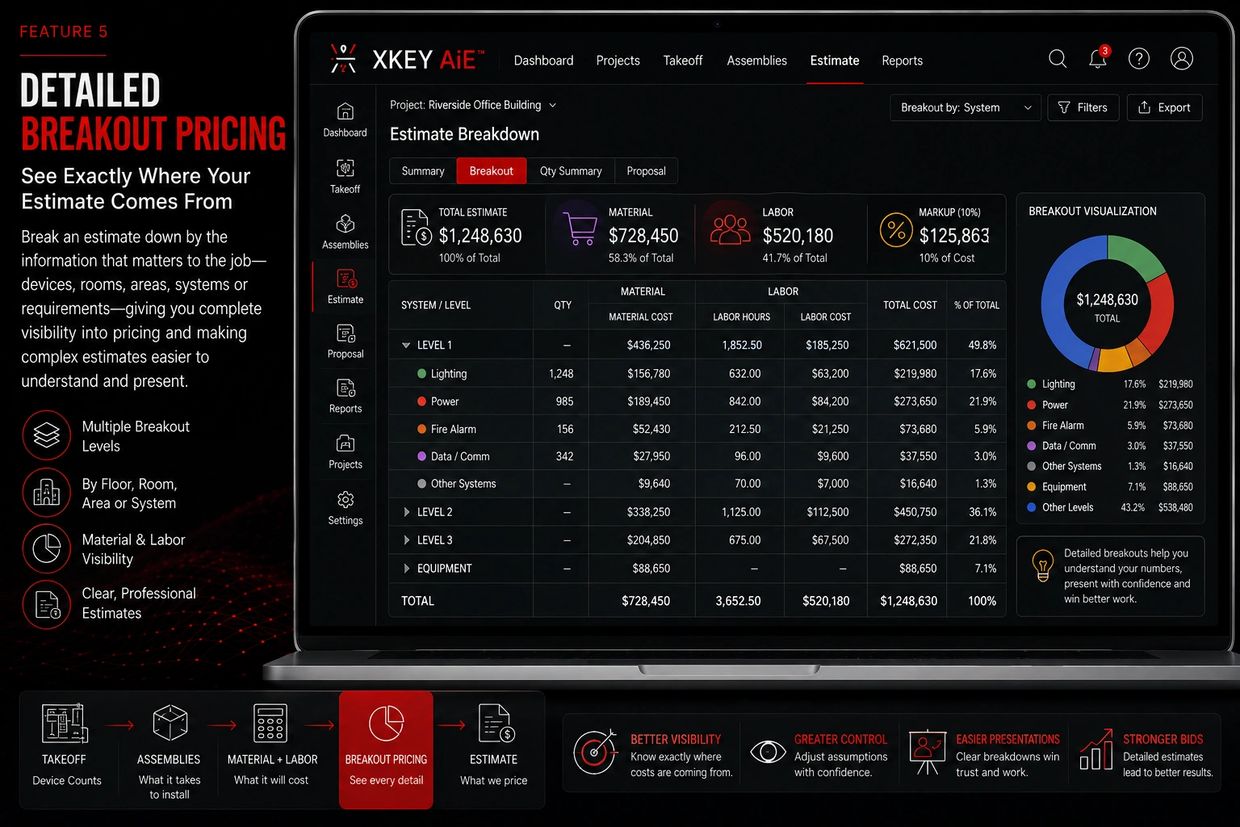

Detailed Breakout Pricing

See Exactly Where Your Estimate Comes From

Break an estimate down by the information that matters to the job—devices, rooms, areas, systems, equipment or other project requirements—giving estimators greater visibility into pricing and making complex estimates easier to understand.

Device Breakouts • Room Breakouts • System Breakouts • Detailed Cost Visibility

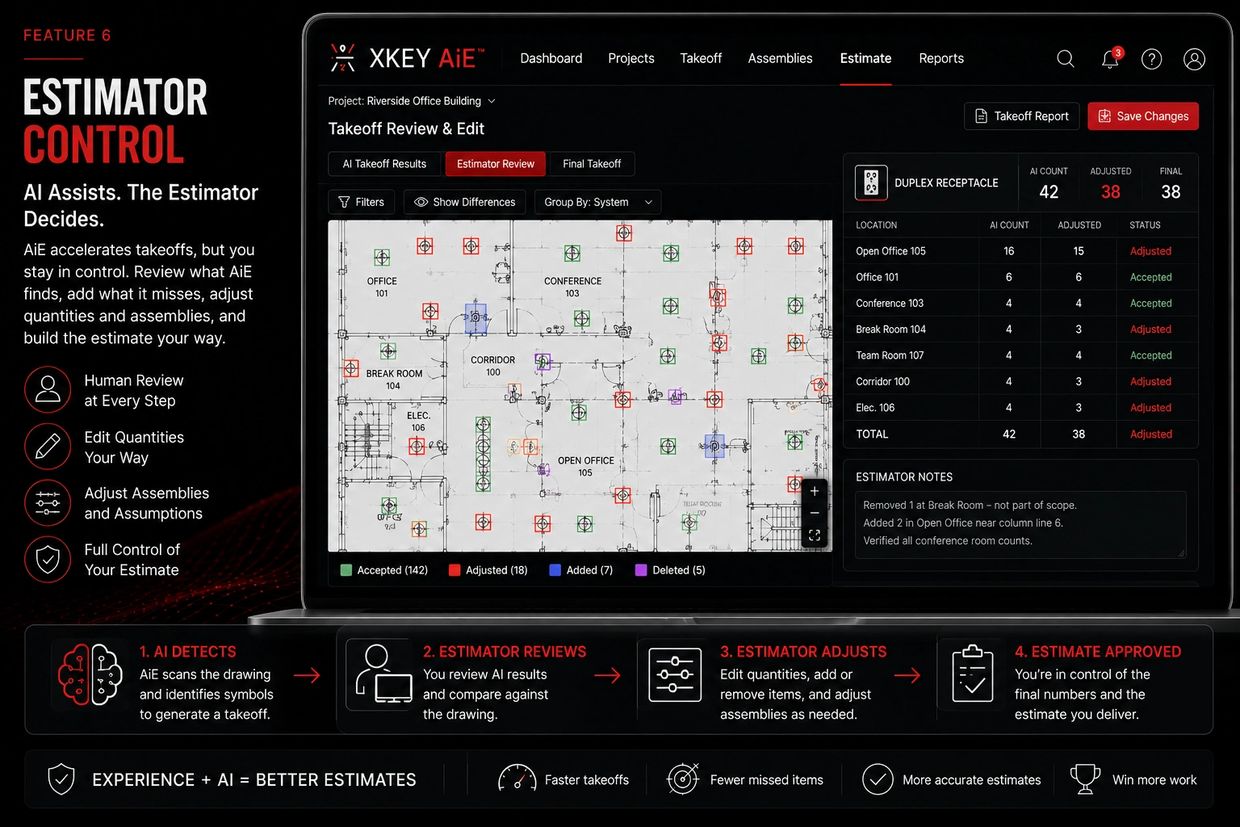

Estimator Control

AI Assists. The Estimator Decides.

Electrical estimating requires experience and judgment. AiE accelerates repetitive takeoff work while keeping the estimator in control of quantities, assemblies, labor, pricing and the final estimate.

Review what AiE finds. Add what it doesn't. Modify assumptions. Build the estimate your way.

Human Review • Editable Takeoffs • Adjustable Assemblies • Full Estimate Control

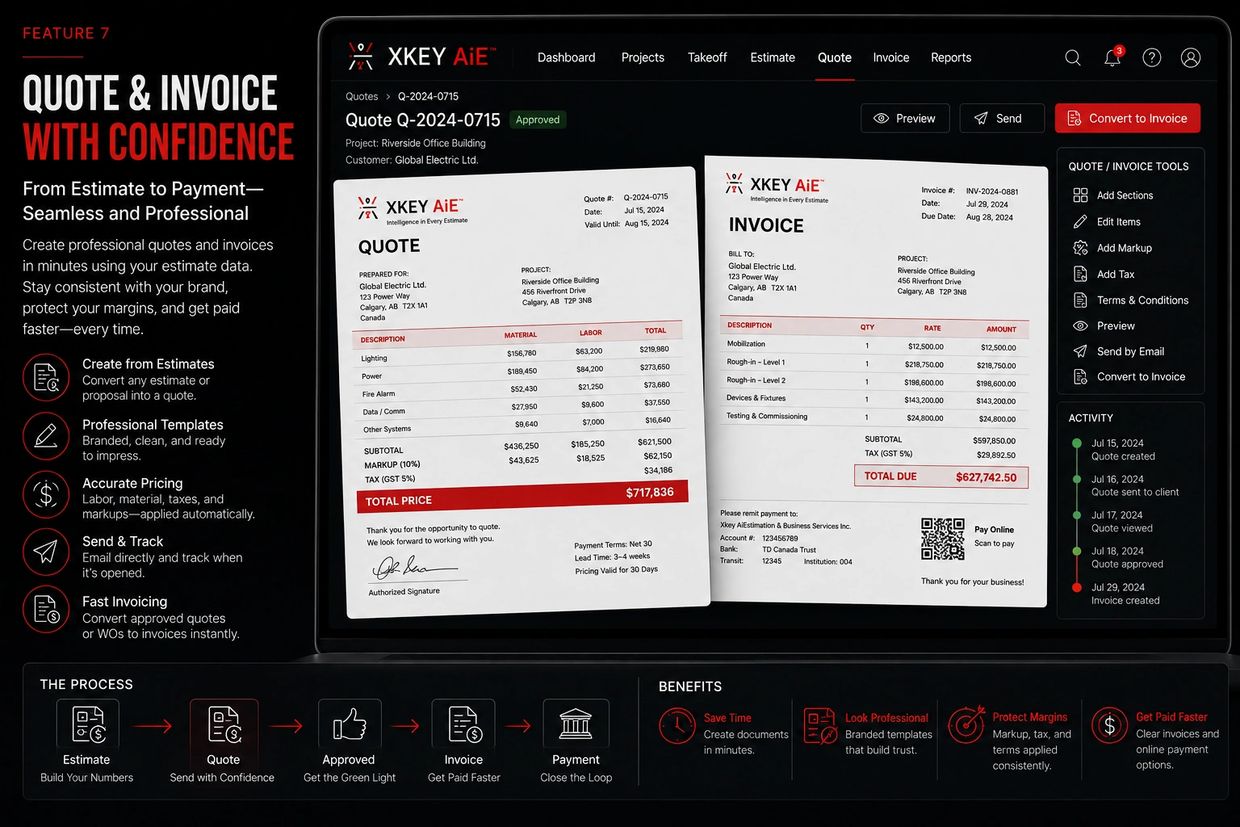

Quotes & Proposals

Turn the Estimate Into a Professional Quote

Once the estimate is complete, carry the information forward into a customer-facing quote without recreating the job in another system.

Control what your customer sees while maintaining the detailed estimating information behind the proposal.

Estimate-to-Quote • Professional Templates • Pricing Control • Customer-Ready Proposals

Estimate to Project

Winning the Job Shouldn't Mean Starting Over

When an estimate becomes an awarded project, the information you've already built shouldn't disappear.

Xkey carries estimating information forward into the project workflow, connecting the original estimate with project management and field operations.

Estimate → Award → Project → Work Orders → Field → Actual Results

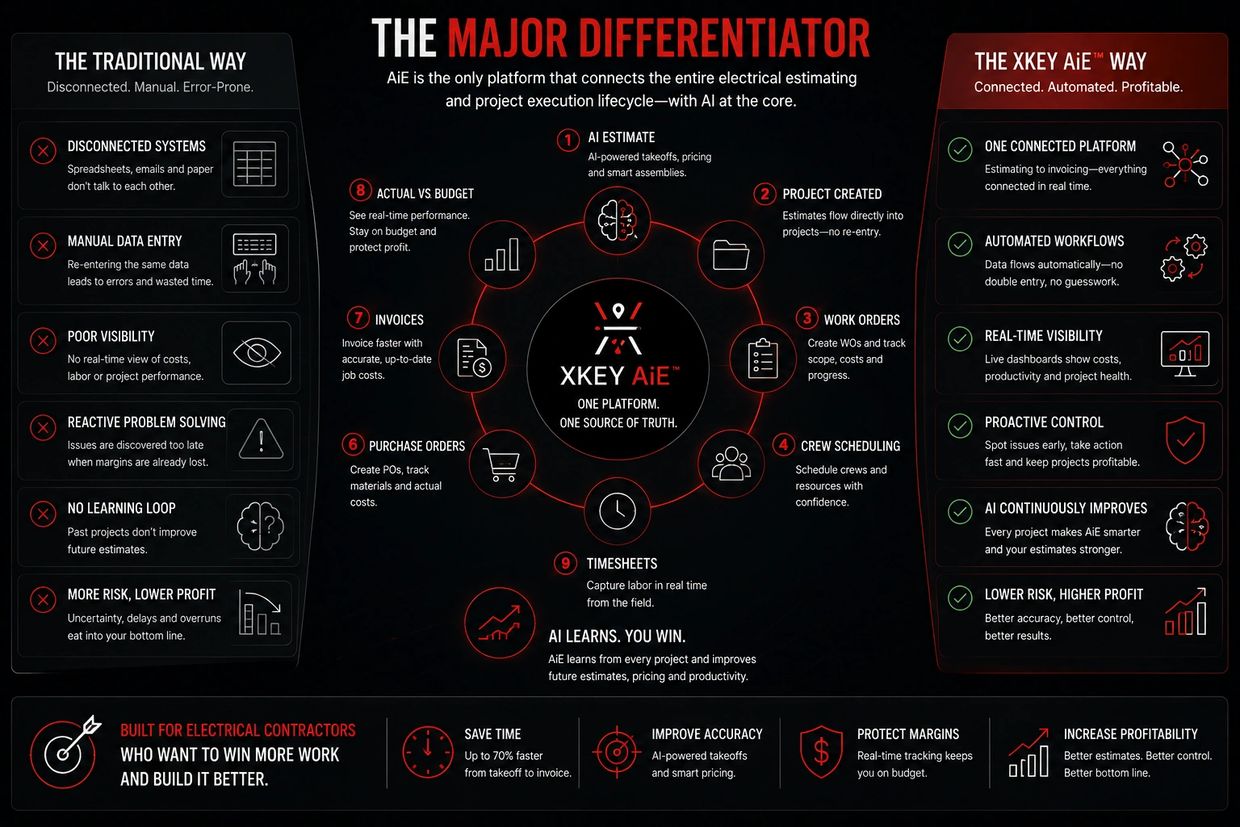

AI Takeoff Is Only the Beginning

A Count Isn't an Estimate

AI can help identify what's on the drawing.

But electrical contractors still need to determine what it takes to install it, how long it takes, what it costs and what to charge.

Xkey connects AI-assisted takeoffs with the estimating tools needed to turn drawing information into a detailed electrical estimate.

Your Estimate Doesn't End When You Win the Job

It Becomes the Foundation of the Project

Once work is awarded, Xkey can carry estimating information forward into Project Management and Field Operations—giving project managers visibility into the original plan and creating the foundation for comparing estimated performance with actual results.

Estimate → Project → Field → Actual Results → Better Information

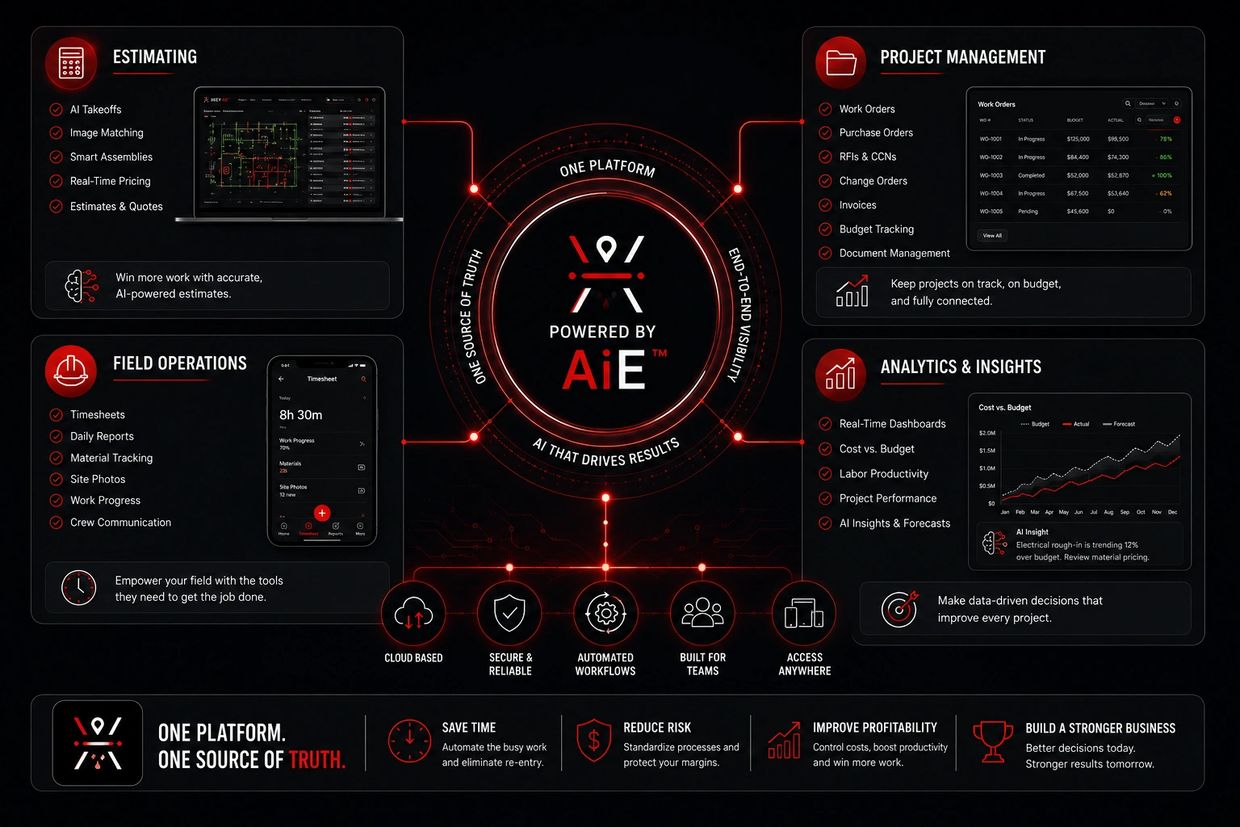

Powered by AiE™

Artificial Intelligence Built Into the Workflow

AiE is Xkey's intelligence layer. In estimating, it helps accelerate drawing takeoffs and visual symbol matching. Across the broader Xkey platform, AiE is being developed to help teams find information, understand project performance and learn from actual project results.
